1.3.1 User Configurable Single-Use Temp USB PDF Data Logger (10 Pieces)

Regular price
$229.77
Regular price
Sale price
$229.77
  • Internal sensor & Self-generated PDF report
  • Measurement range: -30°C to 70°C
  • Accuracy: ±0.5°C
  • PC software for configuration & Data Analysis
  • Storage 8640 records
  • LED status and alarm indication
  • Sampling interval: user configurable from 1 min to 18 hrs
  • Run days: dependent on sampling interval
  • Protection Class: IP65
  • Certification: CE, ROHS, EN12830
  • Batch calibration report included with each pack
  • Test points: -29°C, -18°C, 5°C, 13°C, 30°C and 69°C on the report covering the range
Sku: 32100

Package: 10 pieces

Shipping: 2-3 weeks

1.3.1 User Configurable Single-Use Temp USB PDF Data Logger (10 Pieces)
1.3.1 User Configurable Single-Use Temp USB PDF Data Logger (10 Pieces)

$229.77

  • Description
  • Specifications
  • Manual & Resources

Accurate measurement & easy use data logging
This temperature data logger has an accuracy of ±0.5°C within the wide temperature range of -30°C to 70°C. The settings of alarm points, sampling interval and other parameters can be configured by website downloadable software, PoChain. After configuration, press start button to begin logging. When the logging is completed, plug logger into any PC USB port and a PDF report is automatically generated containing data summary, graph. No special software or driver required for downloading and viewing data in PDF form. 
Up to 6 marker points
This data logger supports data marking to 6 points. In the process of logging, the user can use the button to mark the data.

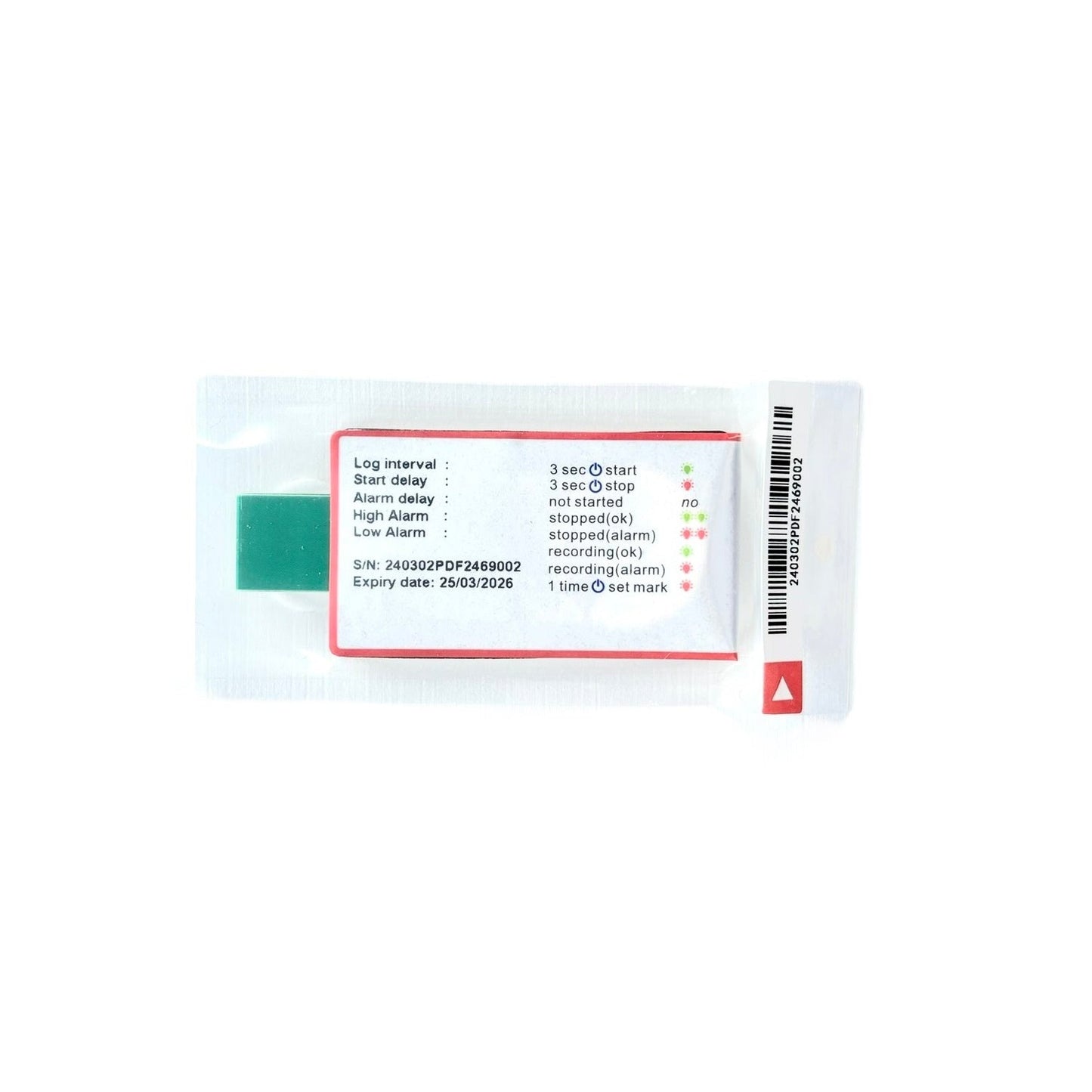

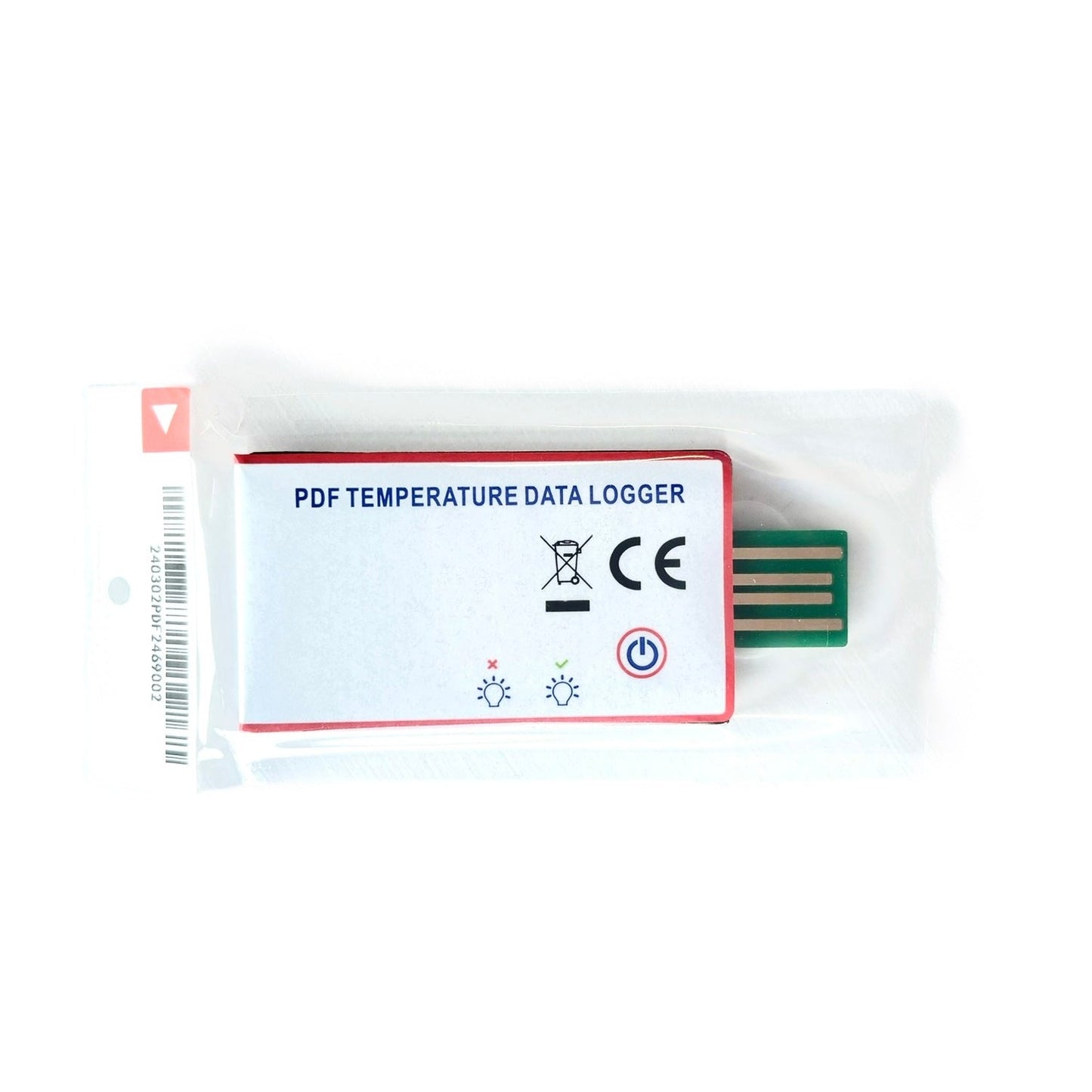

IP protection
Utilizing our expertise in the industry, we proudly offer this product to fulfill our customers' specific onsite needs. The resealable food-grade IP65 receptacle ensures its reliability even when shipped in packaging that contains cold packs or ice, and in damp environments. To maintain protection, keep the logger in its protective plastic receptacle until data retrieval.
Applications
This compact, lightweight temperature data logger can be a reliable device for monitoring the real-time temperature conditions of pharmaceuticals, food, and other temperature-sensitive products during transportation or storage. It’s designed with our customers in mind to allow for easy placement inside any package.
Calibration reports
A batch calibration certificate is provided with each pack to assure accuracy from an ISO/IEC 17025:2017 conforming calibration laboratory and indicates traceability of measurements to the SI units through NIST.
More categories
Additionally, we offer two other categories of custom loggers: one with preset alarm values and logging intervals to choose from, and the other can be customized by the user to meet specific requirements. If you have any inquiries or requests, please don't hesitate to reach out to us. We are more than happy to provide answers and assist in creating a customized setup to fulfill your specific needs.

Probe type

Internal sensor

Unit

°C, °F

Resolution

0.1°C

Measurement range

-30°C to 70°C

Accuracy

±0.5°C

Export file formats

pdf, txt, xls, csv, cin

Report generation

Automatic pdf report generation

Data storage capacity

8640

Sampling interval

User configurable from 1 min to 18 hours

Run days

Dependent on sampling interval

High and low alarm values

User configurable from -30°C to 70°C

Alarm delay

User configurable from 0 to 960 mins

Alarm type

Single time or cumulative, user configurable

Start delay

User configurable from 0 to 254 mins

Start recording mode

Press and hold the button for about 3 secs

Stop recording mode

Press button to stop;

Automatic stop when the memory is full;

When connected to a computer

Operation/storage temperature

-30°C to 70°C

Communication interface

USB 2.0

PC Software

Website downloadable software PoChain for data analysis

No software needed for pdf generation

Power supply

CR2032 Button Cell

Shelf life

2 years

Protection Class

Resealable bags IP65

Dimensions/weight

62mm*27mm*4mm/10g

Certification and standards

CE | ROHS | EN12830

Calibration report

Batch calibration report included with each pack

Test points

-29°C, -18°C, 5°C, 13°C, 30°C and 69°C on the report covering the range
