3.1.4-2 -200°C to 250°C Multi-Use Temp USB PDF Data Logger Large Storage w/ Display

Multi-use, external probe, configurable, PDF auto-generation  

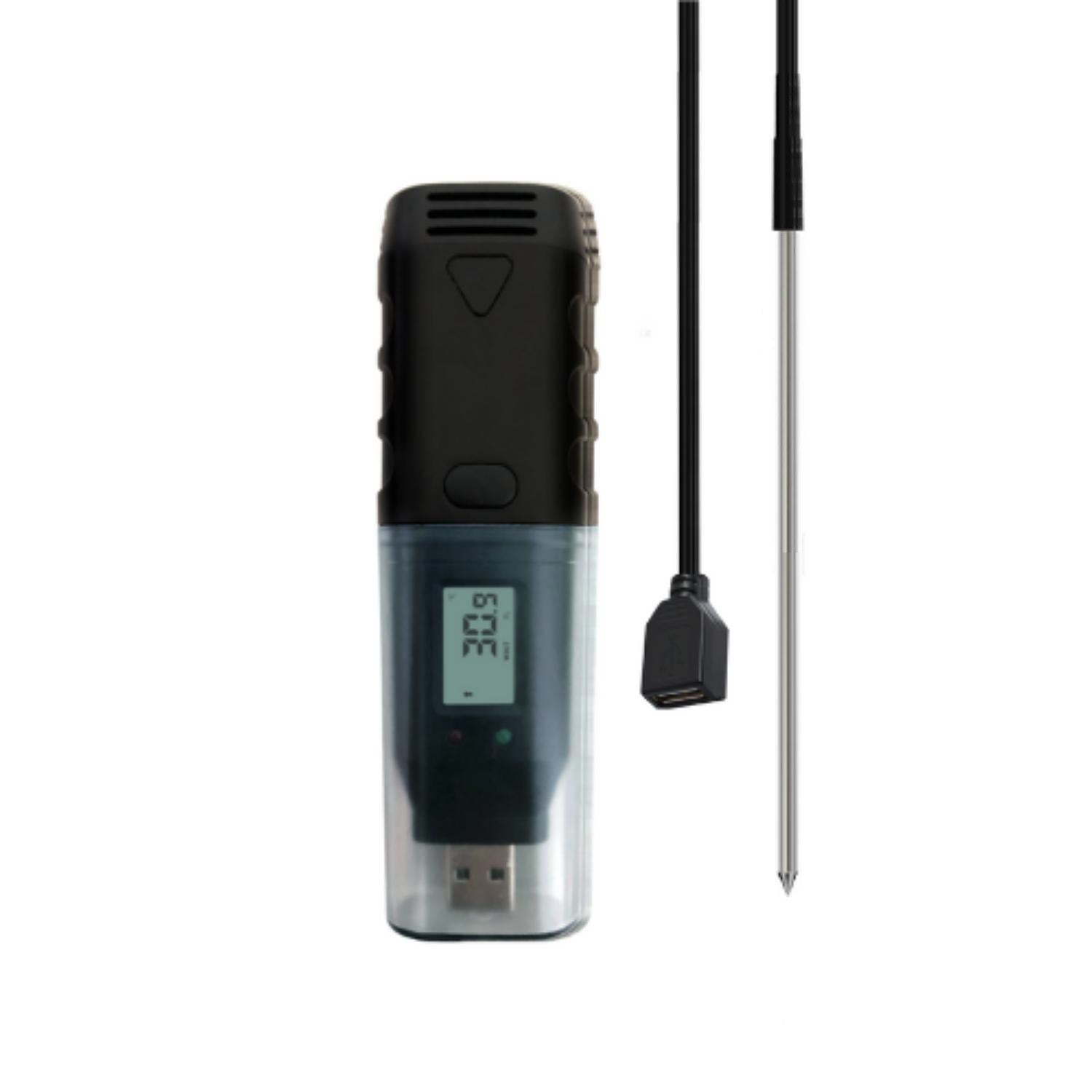

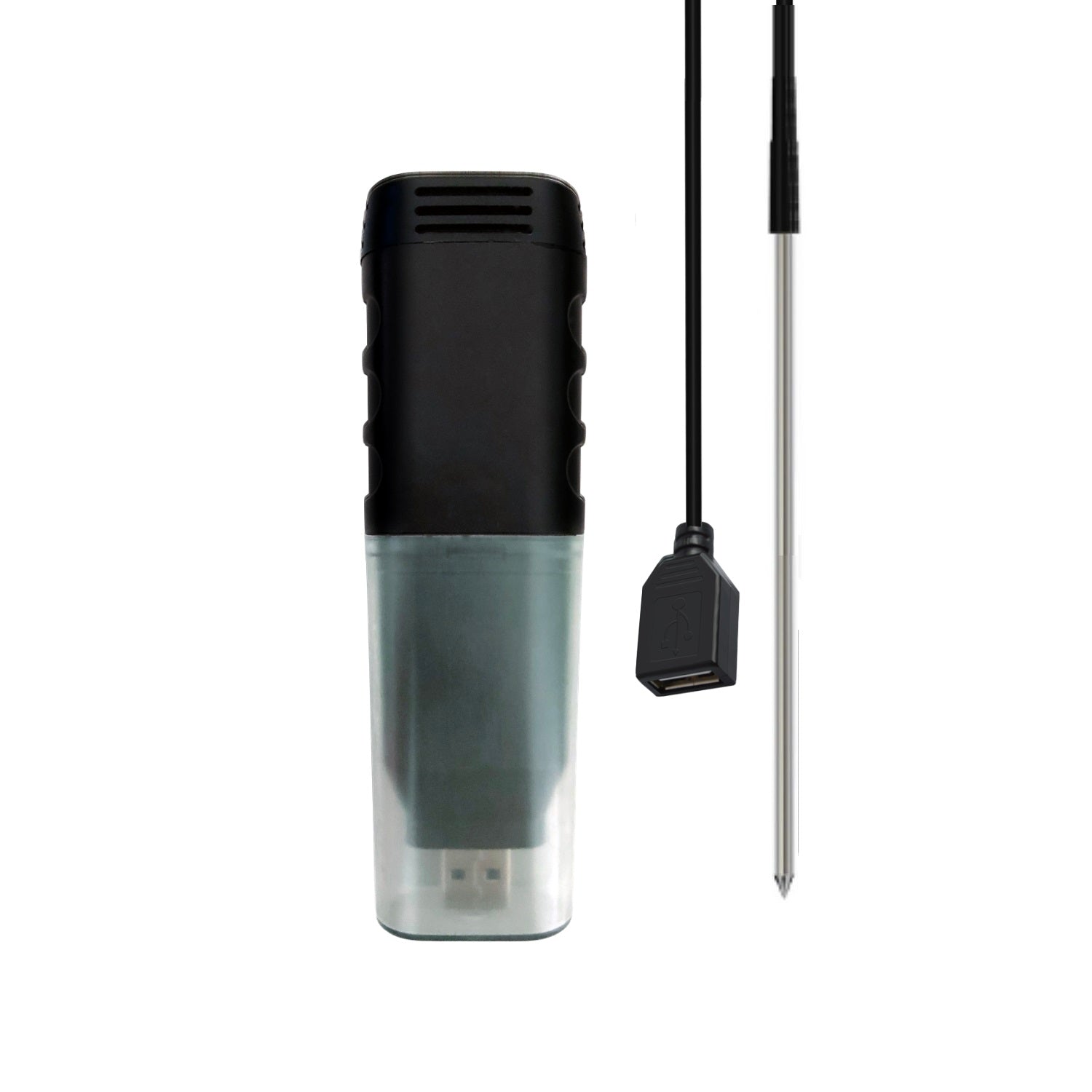

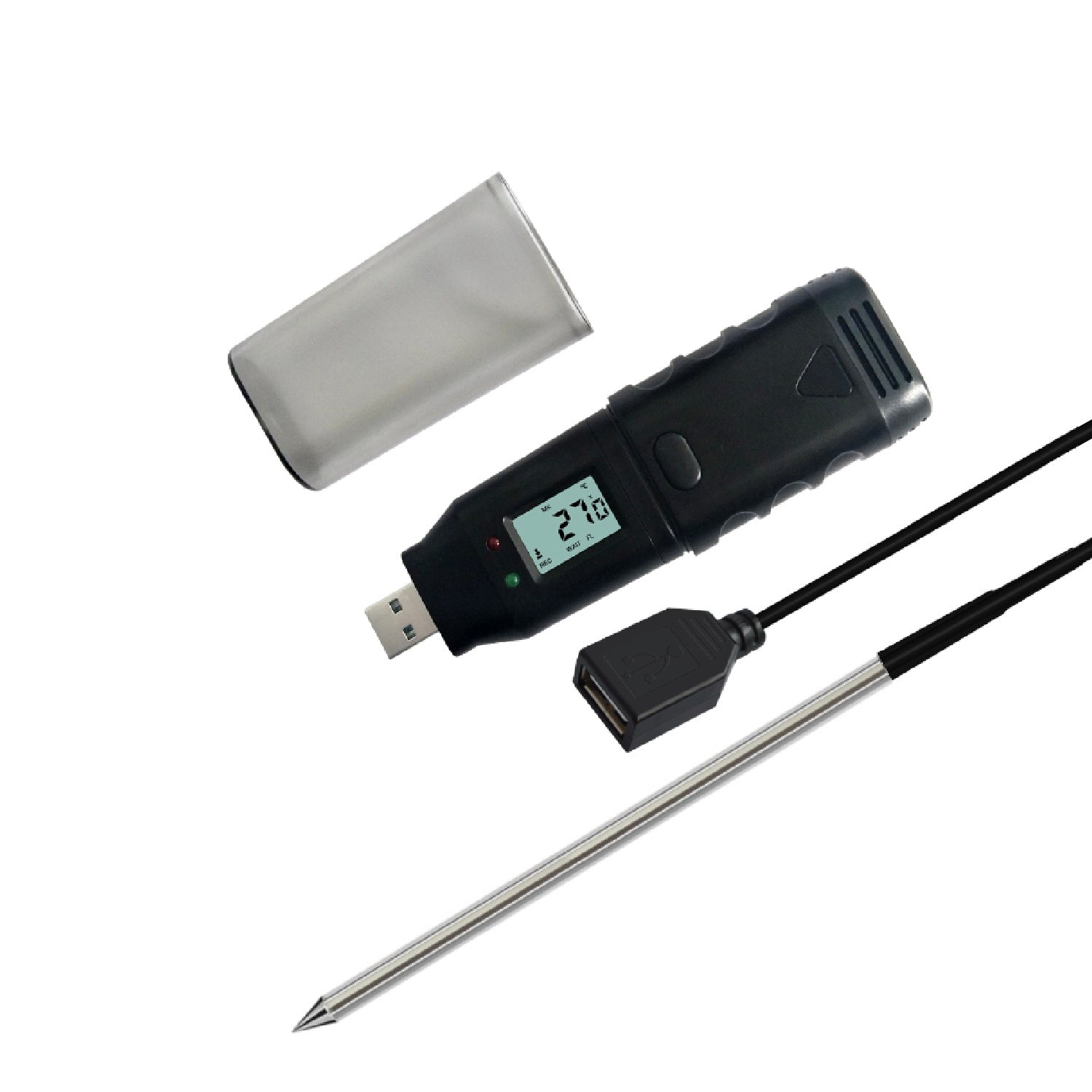

The accuracy of this multi-use data logger with external PT1000 probe is ±0.2°C (-80 to 100°C); ±0.4°C (else), over its range of -200°C to 250°C, with IP40 protection. It can be easily configured using the PoChain software (available for download on the website) and it starts logging immediately or with a delay, depending on your preferred configuration.

After the logging task is completed, connect the data logger to any computer with a USB port, and a PDF file will be generated automatically.  

Data analysis & Data Export

Once connected to a computer with installed PoChain software, this data logger allows for efficient and comprehensive data analysis and exportation in various forms such as xls, csv, pdf, txt, and cin, to a designated location on the user's computer.

Up to 6 marker points

This data logger supports data marking up to 6 points. In the process of logging, the user can use the key to enter mark mode (MK), then press the key to mark the data.

Re-calibratable assures long time use in tolerance

Each unit is shipped with a calibration report to assure accuracy from an ISO/IEC 17025:2017 conforming calibration laboratory and indicates traceability of measurements to the SI units through NIST. It can be recalibrated by PoChain software with up to 6 points calibration by any lab with calibration capability (not recommended to be done by user) or our lab as well.  

STN’s temperature logger is a good choice for a wide range of applications including transportation, storage, production, HVAC and others. It complies with food and drug industry specifications.
