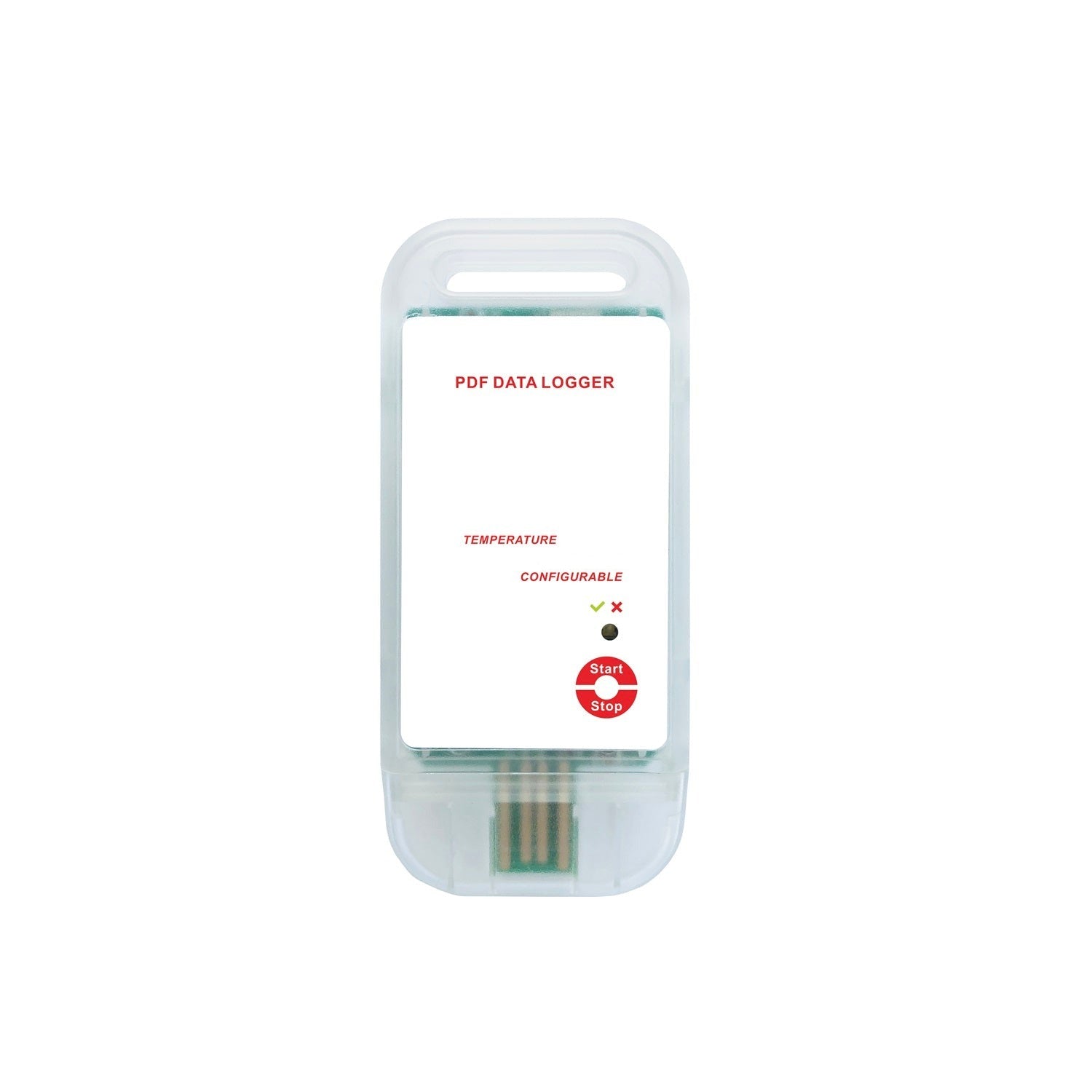

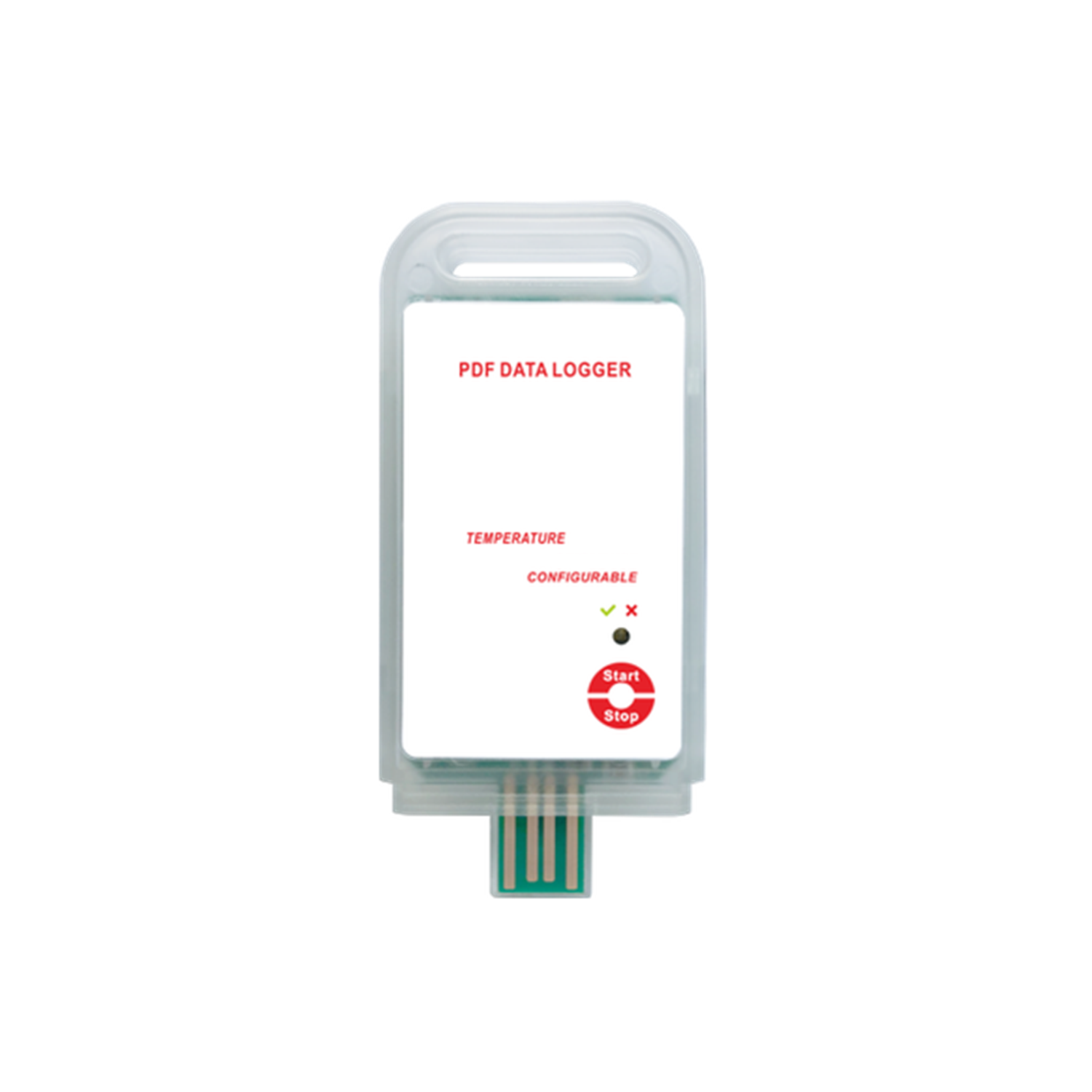

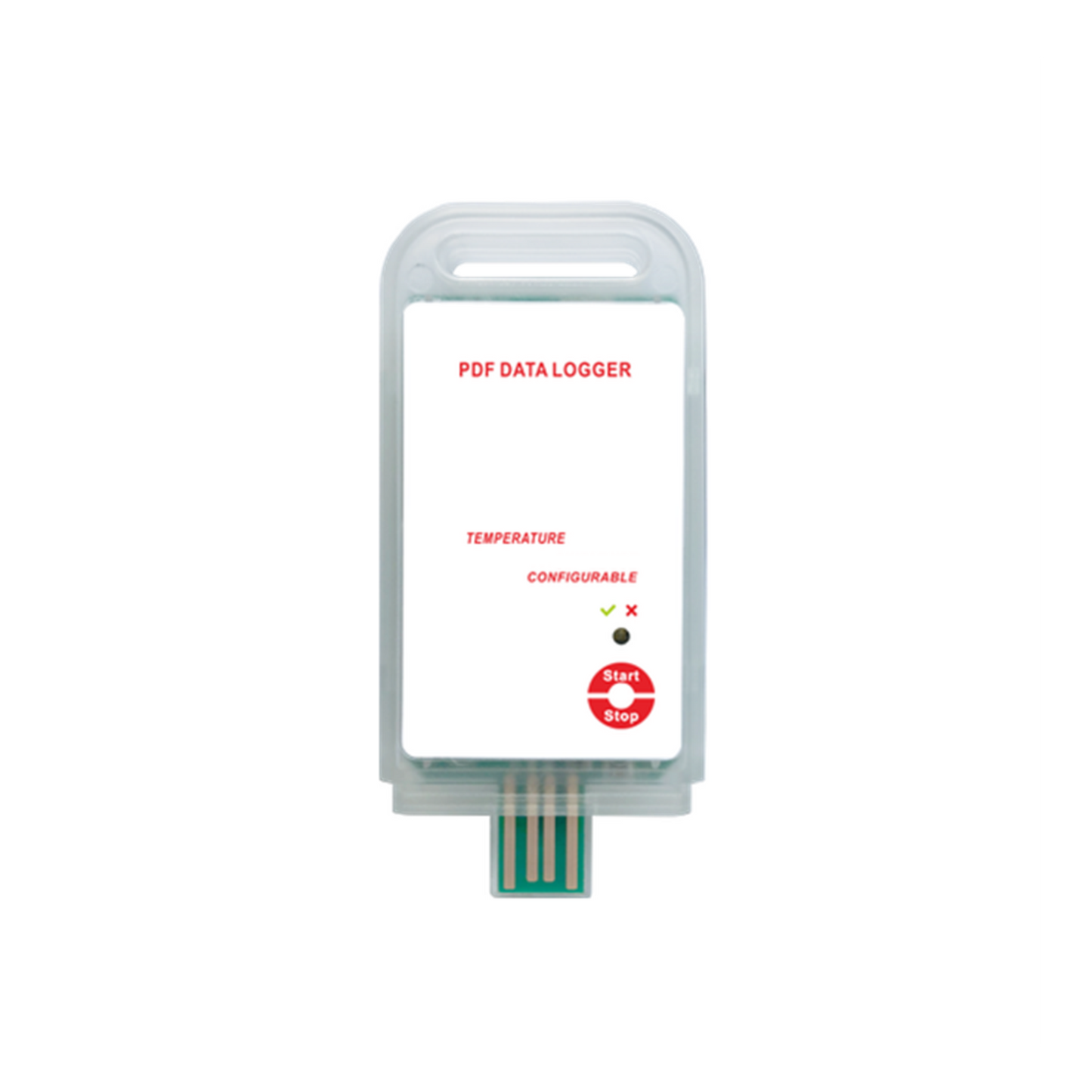

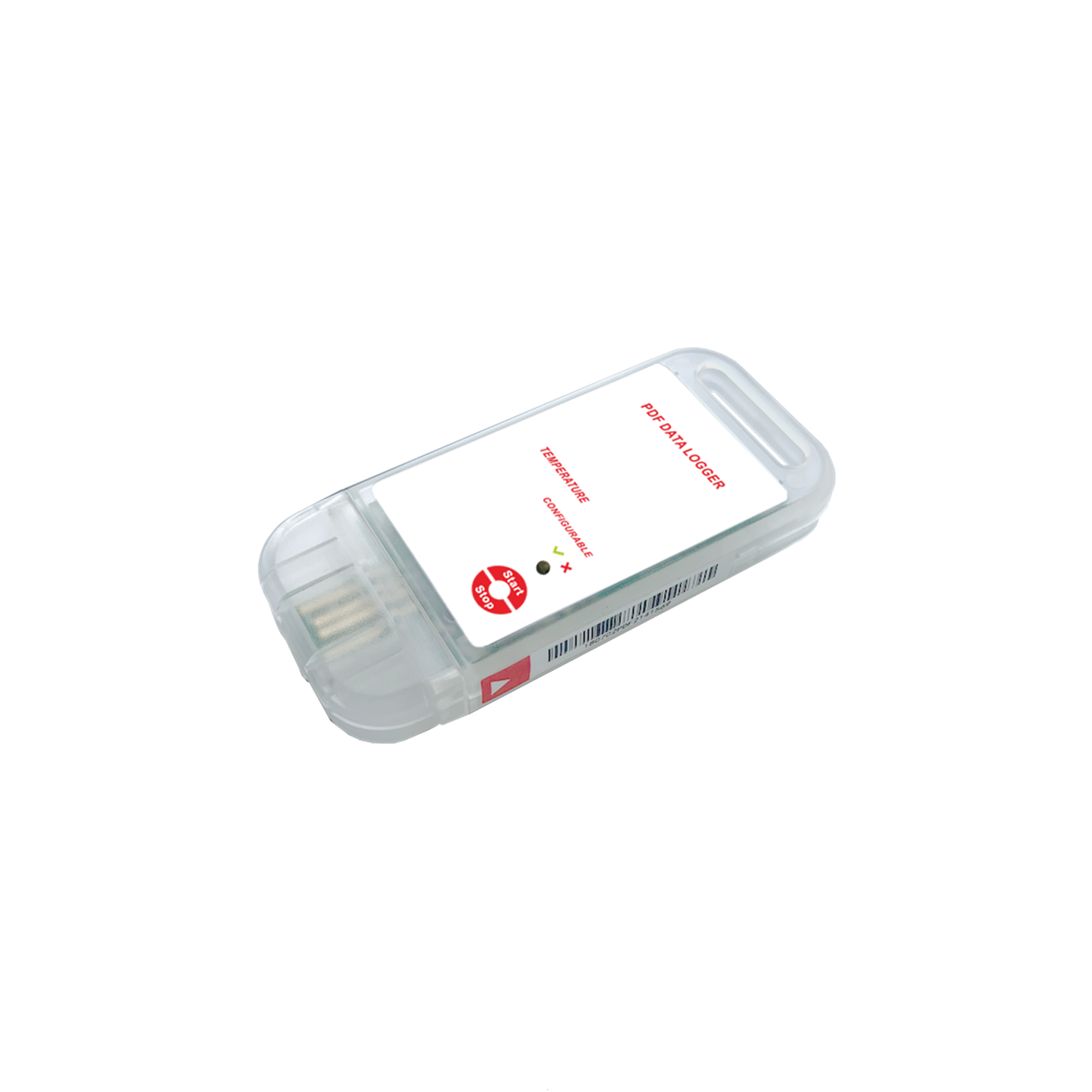

2.1 -30°C to 70°C 3-Use Temp USB PDF Data Logger (5 Pieces)

Regular price
$178.90
Regular price
Sale price
$178.90
  • 3 times configuration and use
  • Internal sensor & Self-generated PDF report
  • Measurement range: -30°C to 70°C
  • Accuracy: ±0.5℃
  • PC software for settings configuration & Data Analysis
  • Large storage capacity up to 30240 records

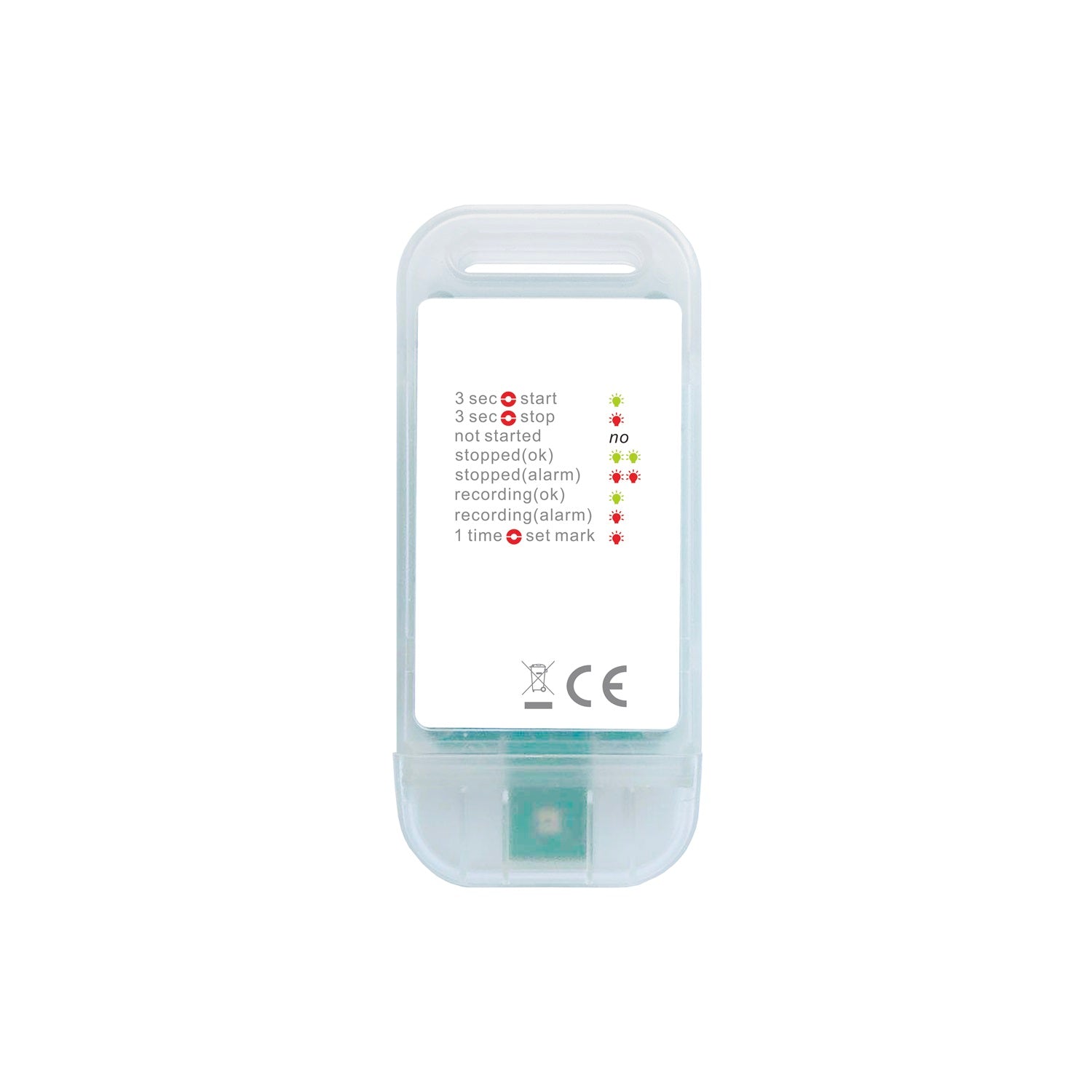

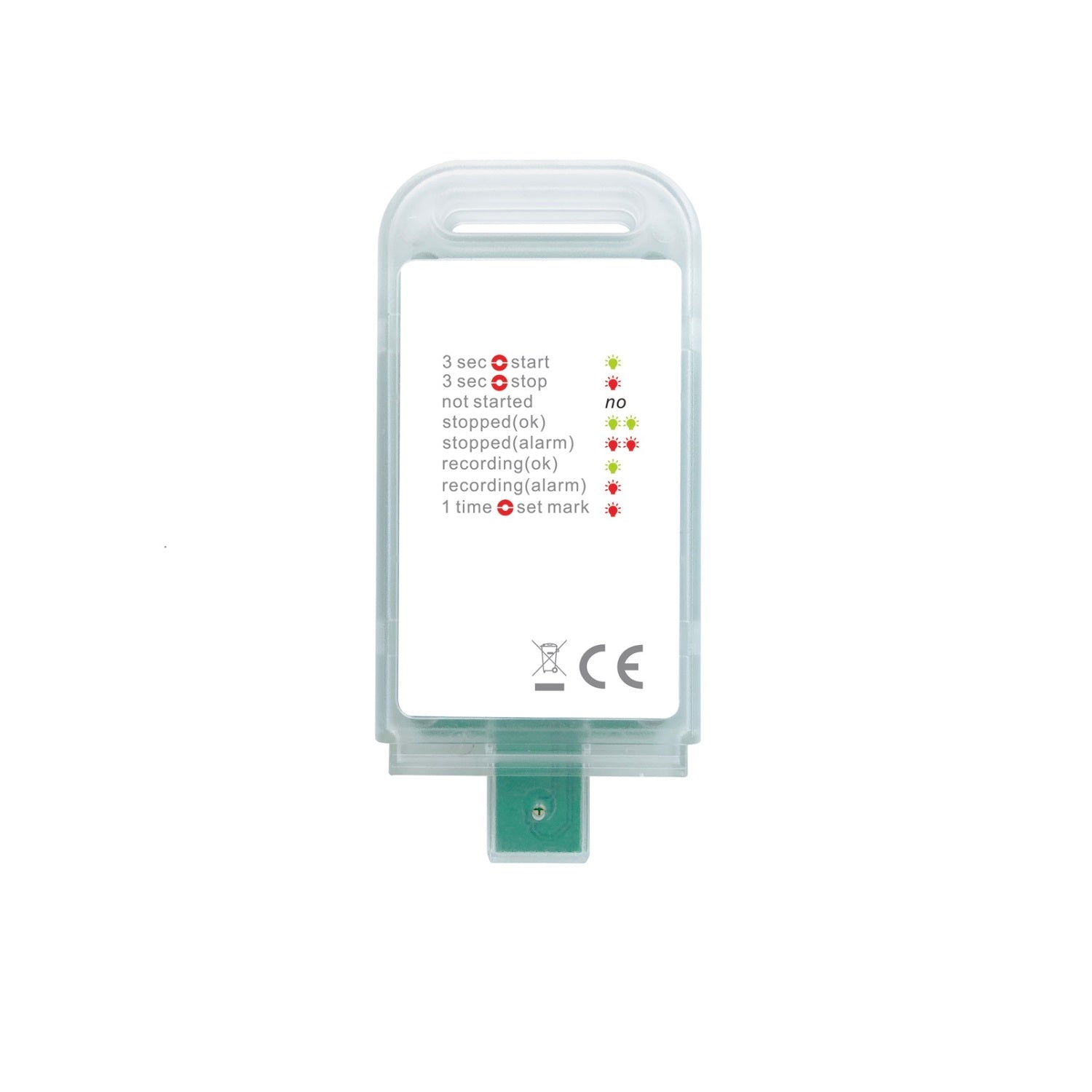

  • LED status and alarm indication
  • Sampling interval: user configurable from 10 sec to 18 hours
  • CR2032 lithium battery, non-replaceable
  • Battery life: about 2 years @15-minute sampling interval
  • Protection Class: IP55 & Certification: CE, ROHS, EN12830
  • Batch calibration report included with each pack
  • Test points: -29°C, 0°C, 25°C, 50°C, 69°C on the report to cover the range
Sku: 34115

Package: 5 pieces

Shipping: 2-3 weeks

2.1 -30°C to 70°C 3-Use Temp USB PDF Data Logger (5 Pieces)
2.1 -30°C to 70°C 3-Use Temp USB PDF Data Logger (5 Pieces)
  • Description
  • Specifications
  • Manual and Resources

Accurate measurement & Settings user configurable

This temperature data logger has an accuracy of ±0.5°C within the wide temperature range of -30°C to 70°C. The downloadable software, PoChain, is user-friendly and allows for easy configuration of settings, as well as analysis of the recorded data. After settings are configured, press start to begin logging your temperature data. When the logging is done, plug logger into any PC USB port and a PDF report is automatically generated containing data summary, graph, and user-initiated marks. No special software or driver is required for downloading and viewing data of PDF form.

3-Configuration and 3-Use design & Applications

The 3 times configuration and triple-use design make it an ideal choice for applications that require precise data tracking of multiple trips using a single data logger.

Calibration reports

A batch calibration certificate is provided with each pack to assure accuracy from an ISO/IEC 17025:2017 conforming calibration laboratory and indicates traceability of measurements to the SI units through NIST.

More Categories

Additionally, we offer two other categories of custom loggers: one category with display, the other one with wider measurement range to specific use requirement. If you have any inquiries or requests, please don't hesitate to reach out to us. We are more than happy to provide answers and assist in creating a customized setup to fulfill your specific needs.

Probe type

Internal sensor

Unit

°C, °F

Resolution

0.1°C

Measurement range

-30°C to 70°C

Accuracy

±0.5°C

Report generation

Automatic pdf report generation

Export file formats

pdf, txt, xls, csv, cin

Data storage capacity

30240

Sampling interval

User configurable from 10s to 18 hrs

Run days

Dependent on sampling interval

High and low alarm values

User configurable from -30°C to 70°C

Alarm delay

User configurable from 0 to 960 mins

Alarm type

Single time or cumulative, user configurable

Start delay

User configurable from 0 to 254 mins

Start recording mode

Press and hold the button for about 3 secs

Stop recording mode

Press button to stop;

Automatic stop when the memory is full;

When connected to a computer

Operation/storage temperature

-30°C to 70°C

Communication interface

USB 2.0

PC Software

Website downloadable software PoChain (Windows 7/8/Vista/10 32/64bits) for configuration & data analysis

No software needed for pdf generation

Power supply

CR2032 button cell, non-replaceable

Battery life

About 2 years @15 minutes sampling interval, 25°C

Protection Class

IP55

Shell material

ABS

Dimensions/weight

85mm*38mm*12mm/20g

Certification and standards

CE | ROHS | EN12830

Calibration report

Batch calibration report included with each pack

Test points

-29, 0, 25, 50° and 69°C on the report covering the range
